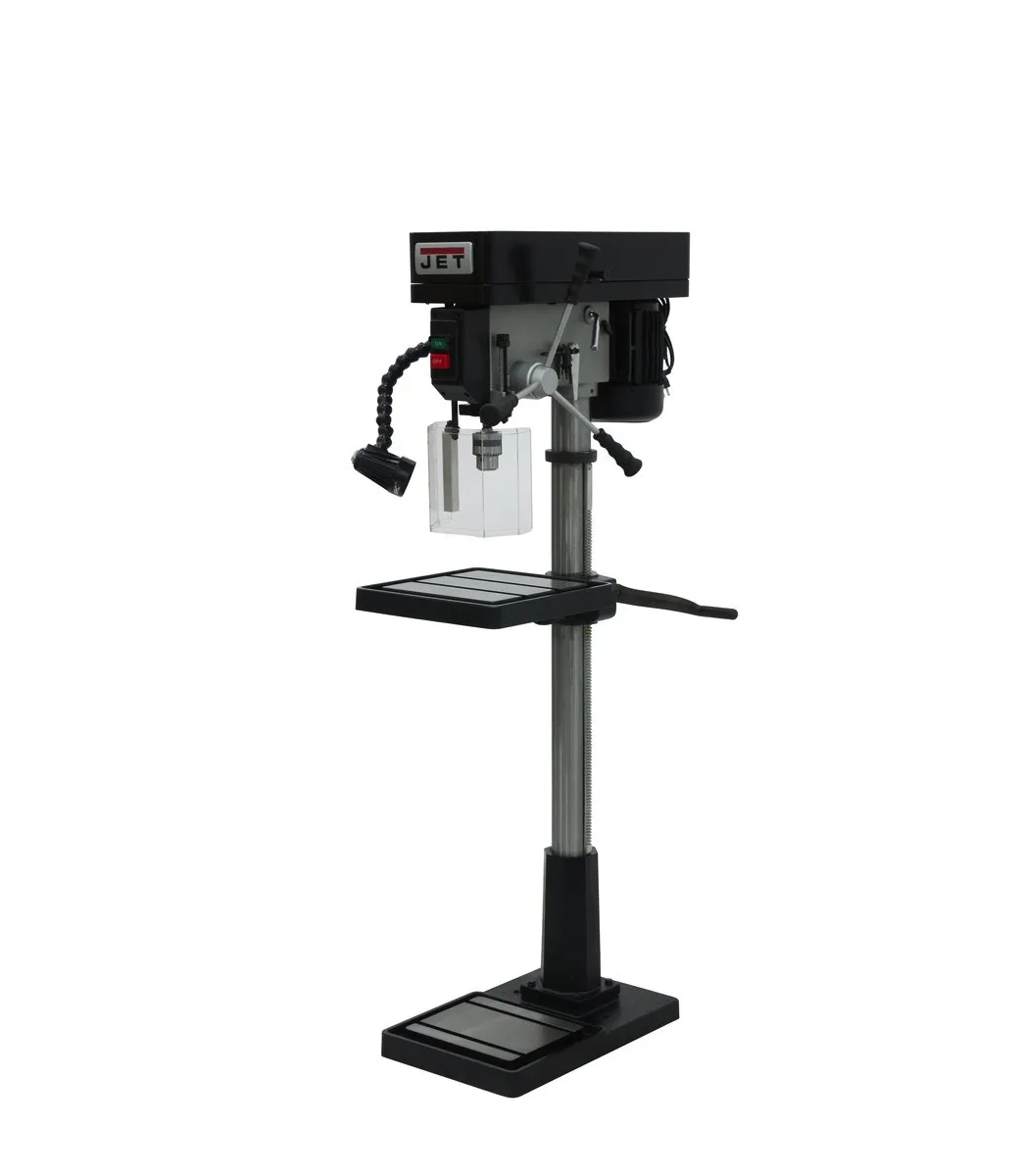

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses.
This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified.
Features- 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- Hinged metal belt and pulley cover
- Large Hand Grips designed with the users comfort in mind
- On/off switch located on front of the drill press head
- Rotating, 45° tilting, crank-operated worktable with quick release clamp
- Spindle is supported by high quality ball bearings
- Table ground for accuracy
| Stock Number | 354300 |
|---|---|
| Base Dimensions (In.) | 21-3/4 x 13-3/4 x 2-3/16 |
| Base Work Table (In.) | 16-15/16 x 10-13/16 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-1/8 |
| Distance Column to Spindle (In.) | 8-3/8 |
| Drilling Capacity Cast Iron (In.) | 3/4 |
| Drilling Capacity Mild Steel (In.) | 5/8 |
| Drills to Center of Circle (In.) | 17 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 27-1/2 x 15-3/4 x 63 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 350 - 2,800 |
| Spindle Distance to Base (In.) | 50 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 3-5/16 |
| Style (Type) | Belt Drive |
| T-Slot Centers (In.) | 9/16 |
| T-Slots Number and Size (In.) | 2 and 1/2 |
| Table Size (L x W) (In.) | 14 x 14 |
| Weight (Lbs.) | 276 |
