Brand - KAYDON
Item Number - 16367001 KAYDON

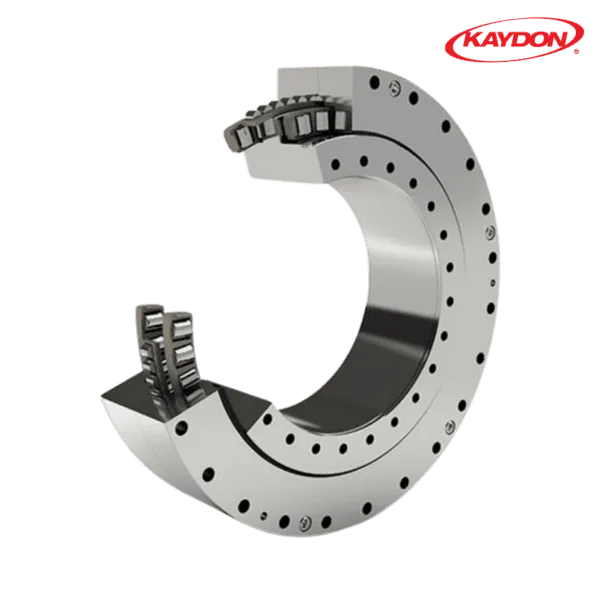

Category - Slewing Ring Bearing (TR Series with External Gear)

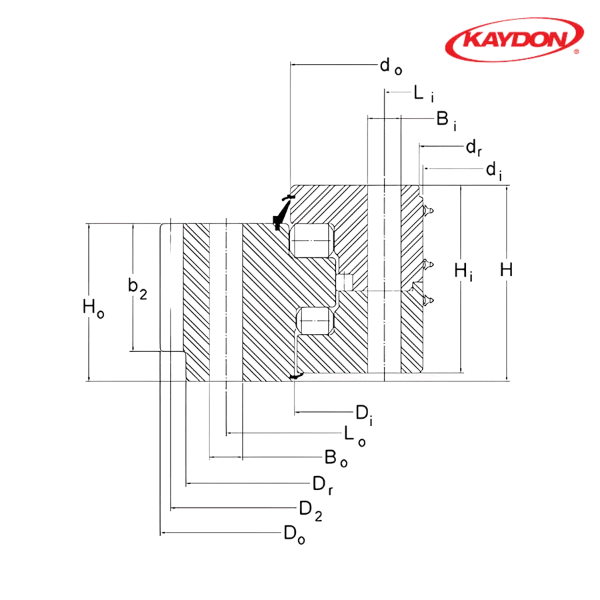

Outline Dimension (Do) inch - 57.1
Outline Dimension (di) inch - 42.5
Outline Dimension (H) inch - 5
Outline Dimension (Ho) inch - 4.5
Outline Dimension (Hi) inch - 4.5
Outline Dimension (Dr) inch - 53.75
Outline Dimension (Di) inch - 48.85
Outline Dimension (do) inch - 49.09
Outline Dimension (dr) inch - 42.63
Weight (G) kg - 566.99
Mounting Holes Outer Ring (Lo) inch - 52
Mounting Holes Outer Ring (no) - 40
Mounting Holes Inner Ring (Li) inch - 44.375
Mounting Holes Inner Ring (ni) - 40
Gear Data Tooth Form - FD
Gear Data (D2) inch - 56
Gear Data (Pd) - 1.5
Gear Data (z2) - 84
Gear Data (x2) - -0.18
Gear Data (b2) inch - 4
Maximum Gear Tooth Load (Fz) lbs - 46750
Moment Rating (Crm) ft-lbs - 829300

** Images are for representation purposes only
