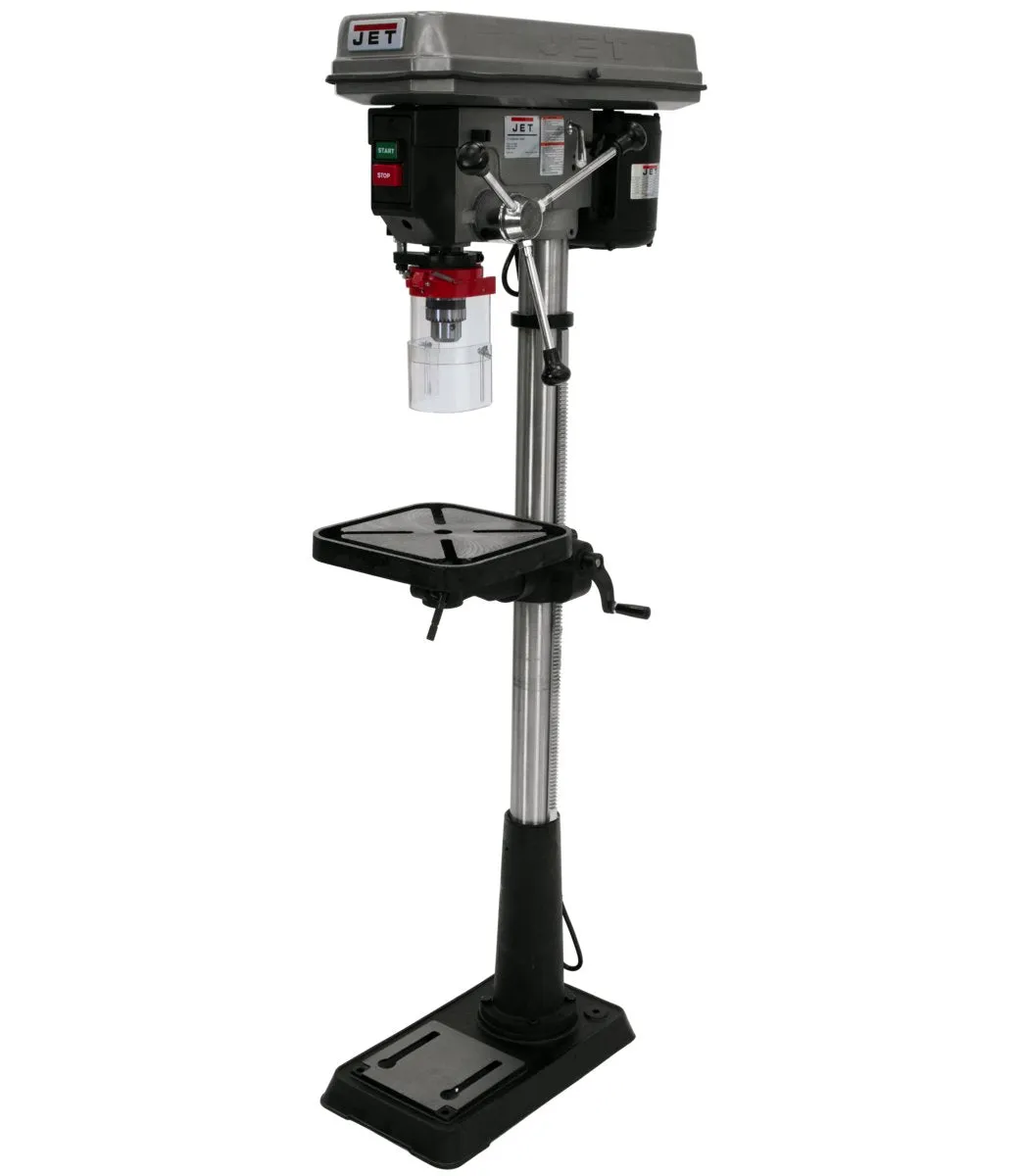

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class.
Features- 3-1/8" stroke for deep hole applications
- Cast iron head
- Constructed to provide a solid base for drilling
- Large ground steel column for maximum head and table support
- Large quill allows greater accuracy
- Telescoping safety spindle guard
- The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
| Stock Number | 354400 |
|---|---|
| Base Dimensions (In.) | 11 x 19-1/2 |
| Column Diameter (In.) | 2-7/8 |
| Distance Column to Spindle (In.) | 7-1/2 |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Drills to Center of Circle (In.) | 15 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 16 |
| Overall Dimensions (L x W x H) (In.) | 31 x 13 x 63 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 |
| Spindle Distance to Base (In.) | 48 |
| Spindle Distance to Table (Max.) (In.) | 24 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 3-3/8 |
| Style (Type) | Belt Drive |
| T-Slots Number and Size (In.) | 3 - 5/8 |
| Table Size (L x W) (In.) | 11-1/2 x 11-1/2 |
| Table Travel (In.) | 24 |
| Weight (Lbs.) | 167 |
| Work Table Weight Capacity (Lbs.) | 44 |
